Rigid Polyurethane Foam (PUF) provides excellent thermal insulation combined with high structural rigidity. Its low thermal conductivity makes it suitable where efficient insulation is required with relatively thin insulation sections.
PUF is particularly suitable for refrigeration and cooling equipment, including deep chest freezers, bottle coolers, water coolers and thermoware. It is also used for water heaters, helping reduce heat loss and improve thermal efficiency.
Key Benefits
- Excellent thermal insulation
- Lightweight and rigid construction
- Suitable for refrigeration applications
- Helps reduce heat loss
- Suitable for cold and hot insulation requirements
PUF Product Forms
- PUF Pipe Sections
- PUF Slabs
- Preformed insulation sections
EPS – Expanded Polystyrene Foam
Expanded Polystyrene (EPS), commonly known as Thermocol, is a lightweight, rigid, closed-cell insulation foam. Its closed-cell structure provides low water-vapour permeability and effective thermal insulation.
EPS is widely used in food containers, packaging, building insulation, chilled-water piping and refrigeration applications
Key Benefits
- Lightweight insulation
- Closed-cell structure
- Good thermal insulation
- Low water-vapour permeability
- Easy to fabricate into required shapes
- Suitable for building and refrigeration applications
EPS Density Range
- 16, 20, 24 and 32 kg/m³

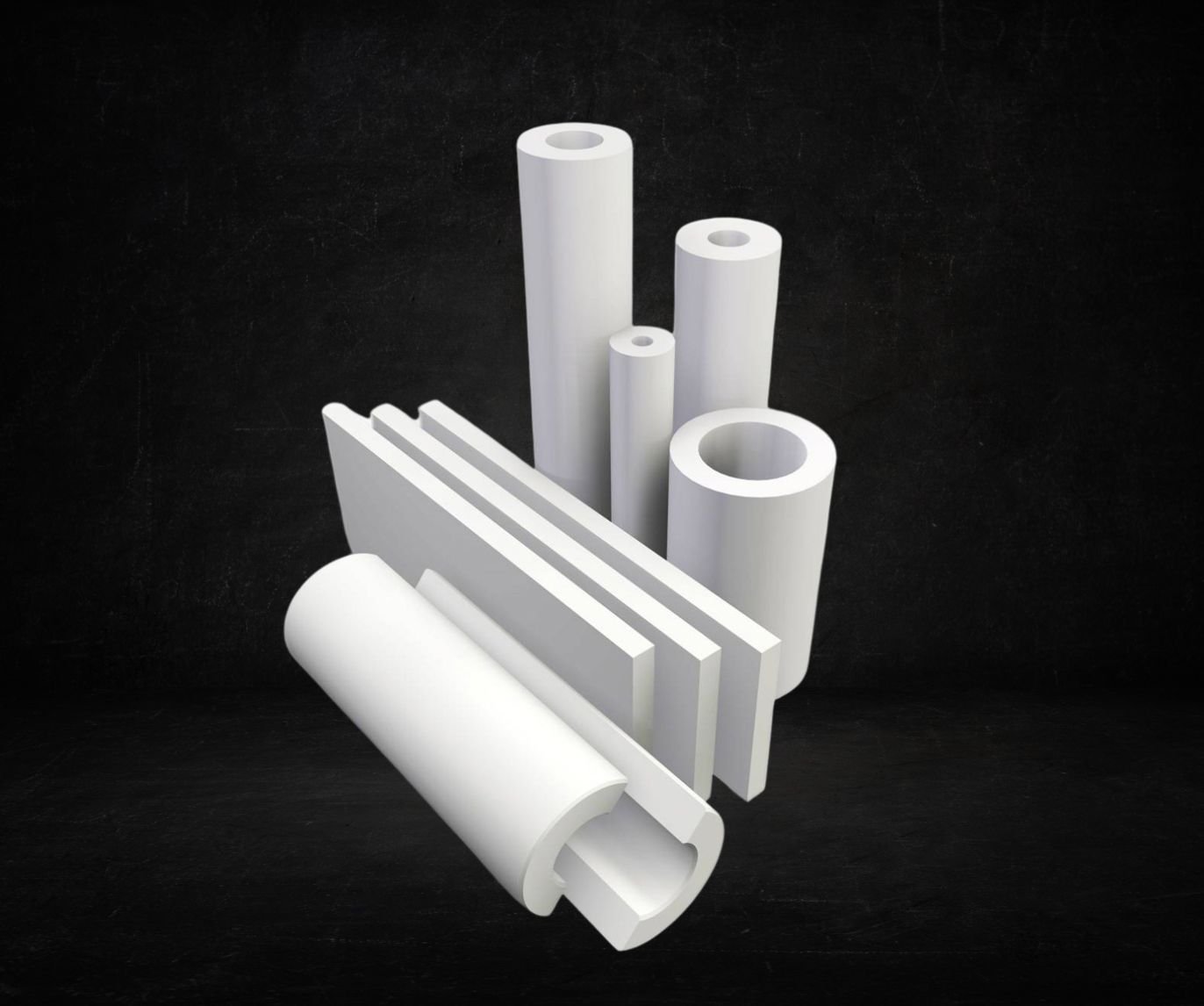

Preformed Pipe Sections & Slabs
KOOTS INSULATIONS offers preformed insulation pipe sections and slabs for applications requiring accurately shaped thermal insulation.
Preformed sections are designed to fit around pipes and provide a consistent insulation layer, while slabs can be used for flat surfaces and equipment insulation.
Available Specifications
| Specification | Details |
|---|---|
| Density | 16, 20, 24 & 32 kg/m³ |
| Dimensions | 1 m × 0.5 m |
| Thickness | 25, 30, 40, 50, 65, 75 & 100 mm |
| Pipe Diameter | 15 mm to 800 mm |
| Thermal Conductivity at 0°C | 0.02751 Kcal/HR M°C |
| Thermal Conductivity at 100°C | 0.03009 Kcal/HR M°C |
These specifications are listed in the brochure's EPS – Expanded Polystyrene Foam / Preformed Pies and Slabs section.
Frequently asked questions
What is PUF insulation?
PUF (Polyurethane Foam) is a rigid, lightweight insulation material with excellent thermal insulation properties. It is suitable for refrigeration, cooling equipment, water heaters and other applications where effective heat-loss control is required.
What is EPS insulation?
EPS (Expanded Polystyrene), commonly known as Thermocol, is a lightweight, rigid, closed-cell insulation material. It provides effective thermal insulation and is used in building, refrigeration, chilled-water piping and other applications.
What are preformed pipe sections and slabs?
Preformed pipe sections and slabs are factory-shaped insulation products designed for easy installation around pipes, equipment and flat surfaces. They provide a consistent insulation layer and are available in different thicknesses and sizes.
Where can PUF and EPS insulation be used?
PUF and EPS insulation can be used for refrigeration systems, chilled-water piping, cooling equipment, water heaters, building insulation, pipes, tanks and various commercial and industrial thermal insulation applications.
